Outdoor Cinema Bundle FAQ - Connect iPhone or iPad

Question:

How do I connect an iPhone or iPad to the projector?

Answer:

Model reference: PJ-CBFWV1-810 (projector model PJ-CBFWV1-810-A)

Applies to: PJ-CBFWV1-810

If your SKU differs, search our support page by your Model SKU to find the correct article.

The Laser Full HD Outdoor Cinema Bundle supports wired and wireless screen mirroring from compatible iPhone and iPad devices.

For wireless mirroring:

1. Connect the iPhone or iPad and projector to the same Wi-Fi network.

2. On the projector, select Mirroring > Wireless Screen - iOS.

3. Follow the screen mirroring instructions shown by the projector.

4. Select the projector from the screen mirroring options on your Apple device.

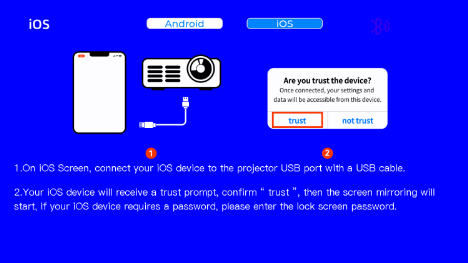

For wired mirroring:

1. Select Mirroring > Wired Screen - iOS.

2. Connect your device using its original USB cable.

3. Accept the Trust prompt on your Apple device.

4. The device screen should then appear through the projector.
