Laser Portable Monitor FAQ - How to Connect with USB-C

Question: How do I connect the Laser Portable Monitor using USB-C?

Answer:

Model reference: PC-15PTMB-209
Applies to: PC-15PTMB-209
If your SKU differs, search our support page by your Model SKU to find the correct article.

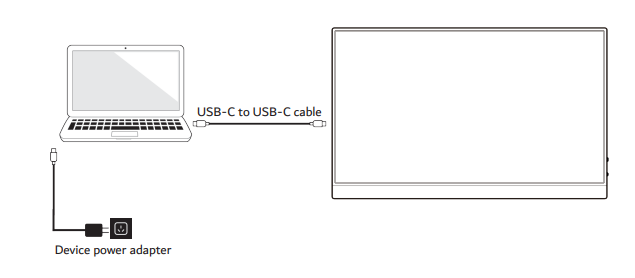

To connect the Laser 15.6 Inch Portable Monitor with USB-C and HDMI using USB-C:

1. Turn off your laptop and unplug its power cable.
2. Connect the USB-C cable between your device and the monitor.
3. Plug in your laptop power adapter.
4. Turn on both devices.
5. Use your laptop display settings to duplicate or extend the screen.

Important notes:

• Your USB-C port and cable must support video and power delivery for proper operation.
• You can connect power directly to the monitor.
• The monitor can pass through power up to 100W to charge your laptop or device when used with a compatible PD adapter and cable.
