Description: Choose from the supplied M6 and M8 TV screws, washers and spacers.
Question: Which screws and spacers should I use for my TV?
Answer: Model reference: TVB-LP38-6T_537 (86 Inch) Applies to: TVB-LP38-6T_537 If your SKU differs, search our support page by your Model SKU to find the correct article.
The Laser Tilt TV Wall Mount for TVs up to 86 Inch includes M6 and M8 TV screws in different lengths, plus washers and two spacer sizes.
Select the combination that matches the mounting-hole thread and depth specified by the TV manufacturer. The screw must engage securely without being too long or too short.

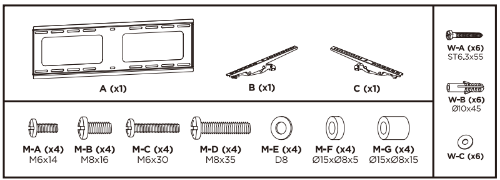

The supplied TV-mounting options are:
- M6 x 14 mm screws
- M8 x 16 mm screws
- M6 x 30 mm screws
- M8 x 35 mm screws
- Washers
- Short spacers
- Long spacers
Do not use a screw combination that does not correctly fit the TV. Have a professional installer confirm the correct option if you are unsure.
