Description: See the mounting parts, TV screws, spacers and wall hardware supplied in the box.
Question: What is included with the tilt TV wall mount?
Answer: Model reference: TVB-LP38-6T_537 (86 Inch) Applies to: TVB-LP38-6T_537 If your SKU differs, search our support page by your Model SKU to find the correct article.

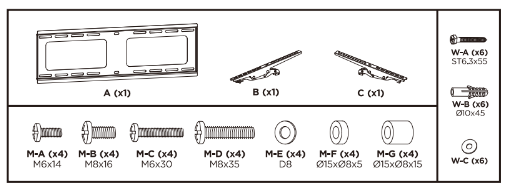

The Laser Tilt TV Wall Mount for TVs up to 86 Inch includes:
- 1 wall plate
- 2 TV mounting rails
- 4 x M6 x 14 mm screws
- 4 x M8 x 16 mm screws
- 4 x M6 x 30 mm screws
- 4 x M8 x 35 mm screws
- 4 washers
- 4 short spacers
- 4 long spacers
- 6 x ST6.3 x 55 mm wall screws
- 6 masonry anchors
- 6 wall-screw washers
The installer must select the correct supplied TV screws, washers and spacers for the TV, and the correct fixing method for the wall.
