Question: How do I adjust the image clarity and keystone?
Answer:
Focus: Rotate the focus wheel until image is sharp.
If the picture isn’t clear after adjusting, move the projector closer to or farther from the screen.
Auto Keystone:
To adjust automatically,

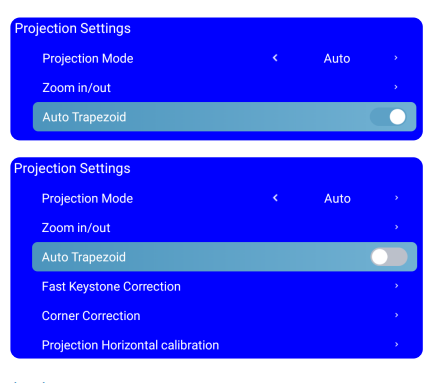

i. Go to Settings > Projection Settings : Trapezoid Settings.
ii. Press OK to enable Auto Trapezoid.
iii. Move the projector up or down. It will adjust the keystone automatically.Settings > Projection Settings > Trapezoid Settings > Enable Auto.
Manual Keystone:
. To adjust manually
i. Go to Settings > Projection Settings : Trapezoid Settings.
ii. Use the directional buttons to adjust Fast Keystone Correction, Corner Correction and Projection Horizontal Calibration settings.
iii. Press OK to switch to the next corner.
iv. Press the BACK button to return to the previous screen.
Digital keystone correction is limited to ±15° vertically. If the image is still distorted, try adjusting the projector’s height.Adjust corners with arrow keys; ±15° vertical limit.
