Question: How do I power and connect the 7" CarPlay Screen with cameras?
Answer:
Plug the USB-C car charger into your car’s 12V/24V socket.

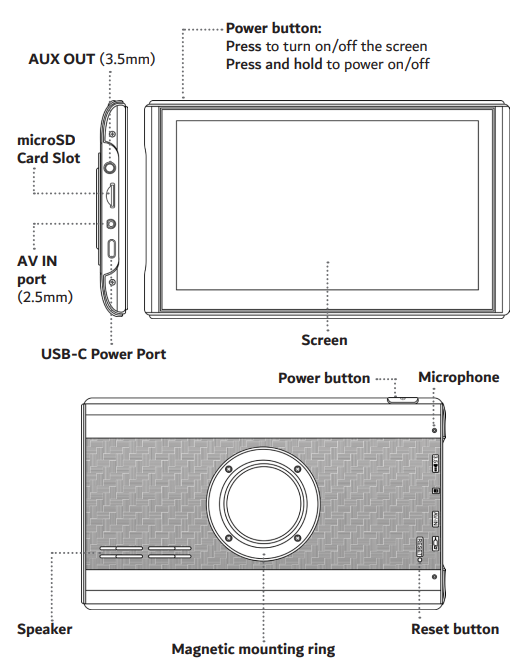

Insert a microSD card (16–256GB, U3-rated) into the screen for video recording.
Connect the USB-C end to the screen.
Attach the front camera using the 4-pin connector on the charger cable.
Connect the rear camera: red wire → reverse lamp positive, 2.5mm jack → AV IN port on screen.
The Navig8r/Laser 7" CarPlay Screen with Dual Cameras is now ready for use.
