Question: How do I connect the CarPlay screen to my motorbike’s power?
Answer:

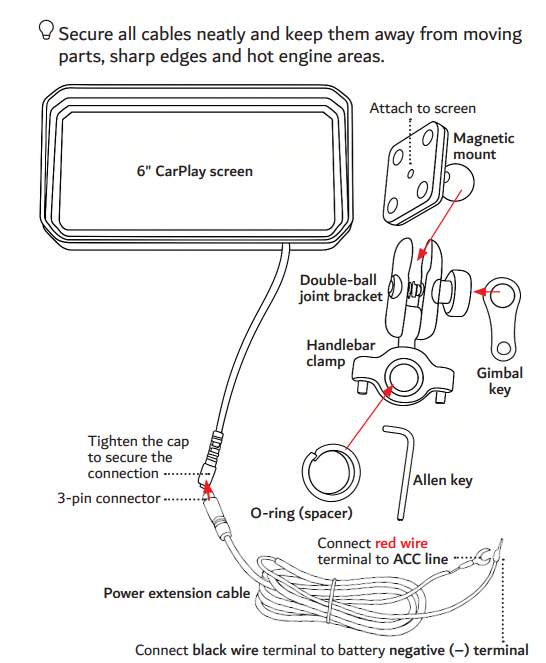

Use a multimeter to locate your bike’s ACC line (12V with ignition ON, 0V when OFF).
Connect the red wire to the ACC line.
Connect the black wire to the battery negative (–) terminal.
Use the 3-pin connector to join the power extension cable to the screen.
Tighten the cap to lock the connector.
Secure all cables away from moving or hot engine parts.
The Navig8r / Laser 6" Motorbike CarPlay & Android Auto Screen must always run via ACC, never directly from battery positive.
